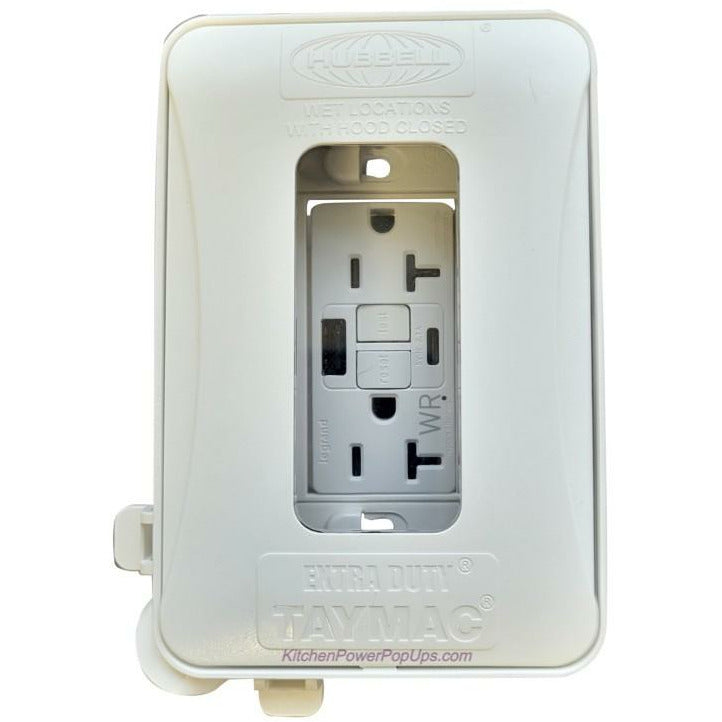

The Taymac ML500WGFIUSB is an outdoor weatherproof rated wall box that allows for power cables to be plugged and used no matter the weather conditions. Compared to traditional exterior wall bubble boxes, these are slim and sleek offering an attractive high-end look for the outside of any home or commercial building. The box is white in color, and includes a matching white 20 Amp GFCI and USB charging tamper resistant (TR) and weather resistant (WR) outlet. This combination provides the most visually appealing outdoor wall box on the market, and the only box to offer both GFCI and USB charging.
Meets 2014 and 2017 NEC Electrical Code Extra Duty Requirements
The wall box meets 2014 and 2017 NEC Code 406.9 for receptacles being used in damp or wet locations. The cover meets the Extra-Duty requirements of a weatherproof enclosure even when the plug is inserted. Extra duty also means that it can withstand several durability requirements including cycle testing the hinged door, rain testing, hot and cold testing. The cover also has to meet UL's Extra Duty requirements for impact testing, so you know that it can survive the rigors that any outdoor application can throw at it.
Durable Polycarbonite Cover is Weatherproof Even During Use

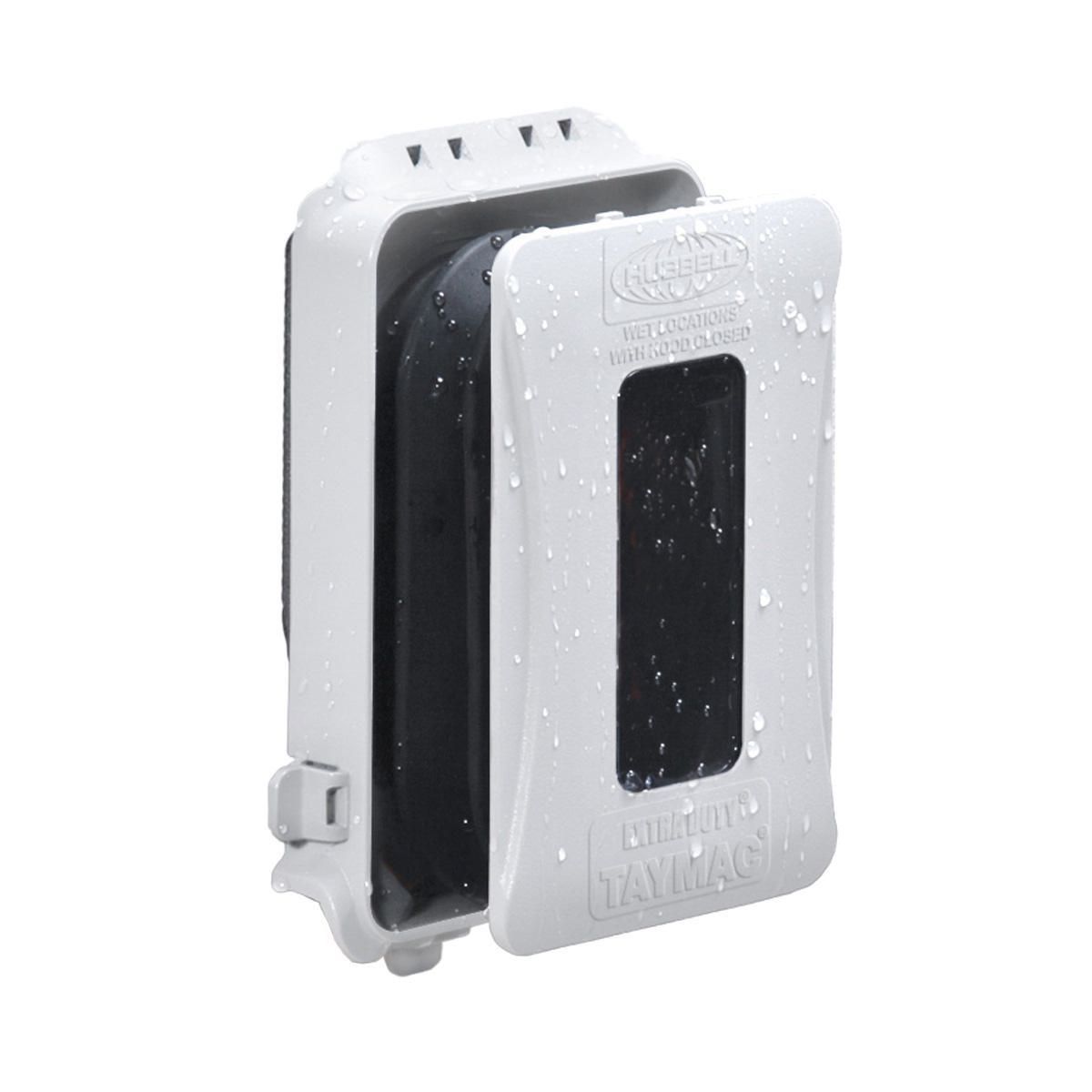

The cover resists rot, fading, and cracking in extreme temperatures. The cover protrudes 1" from the wall, but is expandable to 3" to accommodate the cord and plug. The cover still retains it's weatherproof rating even when the cord is plugged in. It is UL listed for USA installations, and cUL listed for Canada installations. The cover is paintable if you want to paint it the same color as the wall it is being installed on.

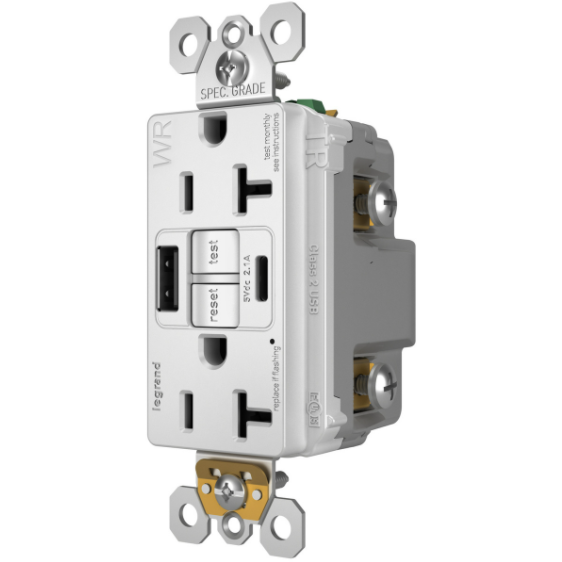

20 Amp USB Charging Matching White WR, TR Outlet
The included white outlet is a perfect match for the white colored box, the outlet is 20 Amp rated with Tamper Resistant (TR) plugs. There is one USB-A port and 1 USB-C port, they offer 2.1 Amps of shared charging. The ports are intelligent charging ports and will sense the device being plugged in, they will then safely send the maximum amount of power the unit can handle. The outlet also features integrated GFI protection, so it won't need to be installed on a GFCI circuit. The outlet meets NEC code installed in the box because it has the required weather resistant (WR) listing. Also included is the gasket and mounting hardware for easy installation.
Specifications:
Color: White
White USB/GFCI charging outlet: 20 Amps
1 USB-A port
1 USB-C port
2.1 Amps of shared charging
Tamper resistant (TR) plugs
Weather resistant (WR) outlet
Integrated GFCI protection
Dimensions: 5.73" x 3.61"
Expandable from 1" to 3"
Meets 2014 and 2017 NEC code 406.9A/B
Nema 3R rated
The cover is paintable
Polycarbonite cover that won't deteriorate
Includes gasket and mounting hardware
cUL listed cover and outlet
Install using a licensed electrician
Install on a GFCI circuit
Consult with electrician/inspector before ordering
1 year warranty
Brochure (PDF)
Specifications (PDF)
Color: White
White USB/GFCI charging outlet: 20 Amps
1 USB-A port
1 USB-C port
2.1 Amps of shared charging
Tamper resistant (TR) plugs
Weather resistant (WR) outlet
Integrated GFCI protection
Dimensions: 5.73" x 3.61"
Expandable from 1" to 3"
Meets 2014 and 2017 NEC code 406.9A/B
Nema 3R rated
The cover is paintable
Polycarbonite cover that won't deteriorate
Includes gasket and mounting hardware
cUL listed cover and outlet
Install using a licensed electrician
Install on a GFCI circuit
Consult with electrician/inspector before ordering
1 year warranty
Brochure (PDF)
Specifications (PDF)
