The Hubbell RU100SS15APLS is a hardwired power box system that mounts underneath your cabinet with a single 15 Amp power plug and switch. The box is stainless, and the outlet is a gray color. Power an appliance and use the switch to turn a light or garbage disposal on or off. Keep your beautiful backsplash outlet free with under cabinet power, no more ugly white outlets in your backsplash.
Easy to Use Slim Profile Angled Power and Light Switch Strip

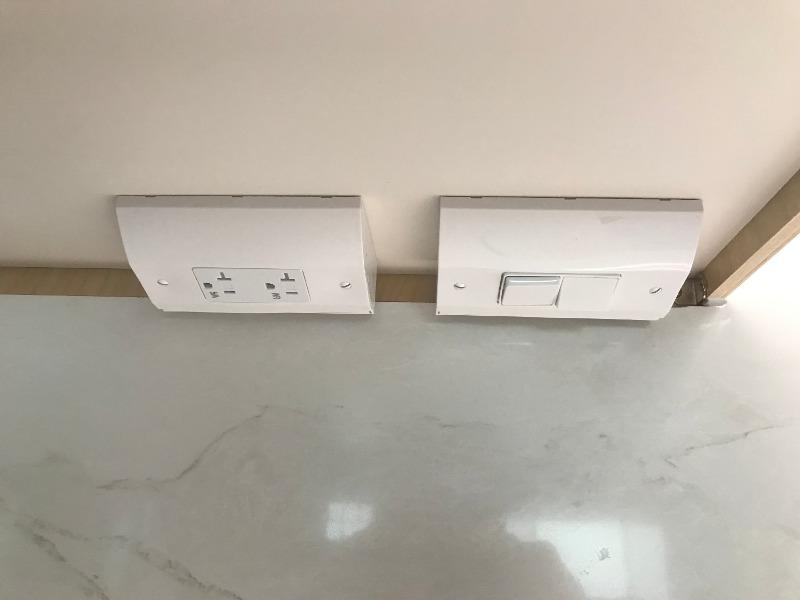

The box installs at an angle under your cabinet making it simple to plug in appliances into the outlet. The box can be installed horizontally under the cabinet so it is not seen, or vertically for even easier access to the outlets. The box is 5.6" long, 3.39" deep, and only 1.63" thick. This is the the slim version box, and slim decora outlet, making it the thinnest profile product to mount an outlet under a cabinet. The box takes up zero space inside the cabinet.
15A Tamper Resistant Plug and Switch Combination Outlet
The outlet is 15 Amp rated and features a tamper resistant (TR) plug. The gray outlet compliments the stainless box for a clean look under the cabinet. The outlet is a standard decora outlet, so if needed, the outlet can easily be replaced should your power requirements change. The switch is single pull allowing one device to be turned on and off. The outlet is rated for residential and commercial applications.
Quick Installation
Feed your wire through one of the 6 knockouts in the box. There are 2 on the back, 2 on the bottom, and 1 on each side. Wire up the receptacle, and install the receptacle in the box. Use the included template to drill the holes through the cabinet, and then use the included screws to mount the power box to the underside of the cabinet. Alternatively the box can be wall mounted if desired. The outlet will need to be installed on a GFCI circuit.
NEC and UL Approved for Kitchens
The box is UL E31999 listed for USA installations, and cUL and CSA approved for Canada installations. The boxes must be installed between 15 inches and 20 inches above the countertop surface to comply with NEC kitchen receptacle code.
Under cabinet power strips are a reliable and affordable solution to have no outlets in your backsplash, and create a super clean and modern look in your kitchen. The under cabinet power system includes the box and receptacle.
How Many do I Need?
The code for outlets under the cabinet are the same requirements as if they were installing in the backsplash. This is typically every 2 feet, however we highly recommend to consult with your electrician to verify your specific requirements.
Specifications:
Color: Stainless box and gray outlet
Outlet: 15 Amp plug and switch
Tamper resistant (TR) plugs
UL listed outlet, # UL498, UL 943 File E48380
UL listed box, # E31999
UL listed for USA, cUL listed for Canada
CSA Approved for Canada
Meets 2017 NEC code for kitchen receptacles
Dimensions: 5.6" long, 3.39" wide, and 1.63" thick
Six 3/4" knockouts
Install between 15 to 20 inches above the countertop
Install using a licensed electrician
Install on a GFCI circuit
Consult with electrician/inspector before ordering
Designed for indoor installations only
Includes all necessary mounting hardware
2 year warranty
Color: Stainless box and gray outlet
Outlet: 15A plug and switch
Tamper resistant (TR) plugs
Weather resistant (WR) outlet
UL listed outlet, # UL 498, UL 943 E48380
UL listed box, # E31999
UL listed for USA, cUL listed for Canada
CSA Approved for Canada
Meets 2017 NEC code for kitchen receptacles
Dimensions: 5.6" long, 3.39" wide, and 1.63" thick
Six 3/4" knockouts
Install between 15 to 20 inches above the countertop
Install using a licensed electrician
Install on a GFCI circuit
Consult with electrician/inspector before ordering
Designed for indoor installations only
Includes all necessary mounting hardware
2 year warranty
Hubbell RU200SS15APLS Brochure (PDF)
Hubbell RU200SS15APLS Diagram (PDF)
Hubbell RU200SS15APLS Installation Instructions (PDF)
